Y 300/500V
Application
These cables are designed for flexible use for mechanical stresses as measuring, control and regulating cables in tool machines, conveyor belts, and production lines in machinery production, in air-conditioning and in steel production, suitable for dry, moist and wet rooms.
Standards
DIN VDE 0245

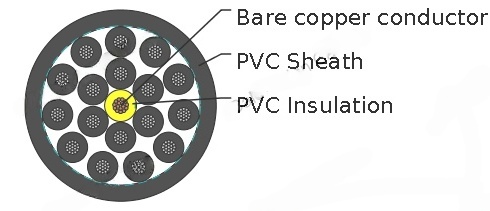

Construction
Conductor | Stranded bare copper, class 5 according to DIN VDE 0295/IEC60228. |
Insulation | PVC Type YI 2. |
Sheath | PVC Type YM 2/TM 2. |
Technical Data
Rated Voltage Uo/U (Um) | 300/500V |
Operating Temperatures | flexing: -15℃~+70℃; fixed: -40℃~+70℃ |
Minimum Bending Radius | flexing: 20×OD; fixed: 10×OD |
Flame Retardant | VDE 0482-332-1-2/DIN EN 60332-1-2/IEC 60332-1 |
Oil Resistant | Yes |
Ozone Resistant | Yes |
Silicone Free | Yes |
Lead Free | Yes |
