Zero Halogen Flame Retardant 110℃ Double Insulated Cable, 0.6/1kV
Application
These cables are used in power and switchboard fixed applications
Standard
AS/NZS 5000.1
AS1125
AS3808
Construction

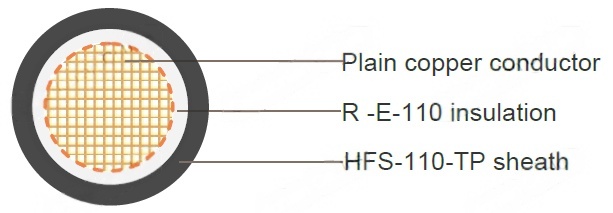

Conductor | Nominal 0.2mm stranded flexible plain copper wire to AS 1125 |
Insulation | R -E-110 to AS3808 |
Insulation Colour: | White |
Sheath: | HFS-110-TP to comply with AS3808 |
Sheath Colours: | Orange , Black - other colours available by request |
Technical Characteristics
Conductor Size | Electrical Resistance @20.C | Current Ratìng' AMPS 2 single cores | Voltage Drop mV 1Am at Max operating Temperature | |
|---|---|---|---|---|
mm^2 | Ohm/km | Single Phase | Three Phase | |
10 | 1.910 | 105 | 4.97 | 4.30 |
16 | 1.210 | 135 | 3.13 | 2.70 |
25 | 0.780 | 185 | 1.99 | 1.72 |
35 | 0.554 | 225 | 1.44 | 1.24 |
50 | 0.386 | 275 | 1.07 | 0.92 |
70 | 0.272 | 350 | 0.769 | 0.65 |
95 | 0.206 | 435 | 0.567 | 0.48 |
120 | 0.161 | 510 | 0.465 | 0.39 |
Cable Parameter
Conductor Size | No.of cores | Conductor No./ OD | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal O.D. | Approx. Cable Weight |
|---|---|---|---|---|---|---|
mm^2 |
| mm | mm | mm | mm | kg/100m |
1 | 322/0.2 | 1.0 | 1.4 | 9.1 | 16.30 | |
1 | 511/0.2 | 1.0 | 1.4 | 10.1 | 23.40 | |
1 | 784/0.2 | 1.2 | 1.4 | 11.8 | 33.60 | |
1 | 1120102 | 1.2 | 1.4 | 13.1 | 44.60 | |
1 | 1568/0.2 | 1.4 | 1.4 | 14.9 | 62.50 | |
1 | 2240/0.2 | 1.4 | 1.4 | 17.0 | 81 .80 | |
1 | 3040/0.2 | 1.6 | 1.5 | 19.3 | 113.00 | |
1 | 3800/0.2 | 1.6 | 1.5 | 20.8 | 137.40 |
